KTR-N Cast Iron Pump
3-piston alternating volumetric pumps for use on cleaning units and industrial systems. It can be coupled to various types of motors, directly or wit...
Welcome to our Pumps category, your premier source for high-quality pumping solutions tailored to meet the needs of various industries. Our extensive range of pumps is designed to offer reliable, efficient, and durable performance across a broad spectrum of applications. From industrial processes to high-pressure cleaning, our pumps are engineered to deliver exceptional results in even demanding environments.
Key Features
1. Advanced Design and Materials
Our pumps, including high-pressure plunger pumps, are crafted using materials such as cast copper and stainless steel. These materials are selected for their durability and resistance to wear, ensuring that our pumps can withstand rigorous use over long periods. The meticulous design of each pump type focuses on reducing the wear of internal parts, thereby extending the operational life of the pumps.
2. Precision Manufacturing
Each of our pumps is manufactured using precision imported equipment. This high level of manufacturing accuracy ensures that every pump meets stringent quality standards. The precision in manufacturing not only enhances the performance of our pumps but also ensures consistency and reliability in their operation. This meticulous attention to detail in production helps in maintaining the pumps’ efficiency and longevity.
3. Rigorous Quality Control
Before reaching our customers, each pump undergoes more than three thorough inspections. These inspections are designed to verify the performance and reliability of the pumps, ensuring that they can handle the required tasks effectively. Our commitment to rigorous quality control ensures that every pump leaving our factory is of quality and ready to perform under demanding conditions.
Advantages
1. High Durability
One of the primary advantages of our pumps is their high durability. Made from robust materials like stainless steel and cast copper, our pumps are designed to resist corrosion and wear. This durability ensures that the pumps have a long service life, providing reliable performance over time and reducing the need for frequent replacements.
2. Superior Efficiency
Our pumps are engineered to deliver efficiency in various applications. Whether used in industrial processes, water descaling, or high-pressure cleaning, the precision design and manufacturing of our pumps ensure that they operate with efficiency. This efficiency translates into cost savings for our customers, as the pumps require less energy to operate and maintain performance.
3. Versatile Applications
The versatility of our pumps is another significant advantage. They are suitable for a wide range of applications, including the petroleum, chemical, fertilizer, metallurgy, and shipbuilding industries. Additionally, they are ideal for high-pressure water cleaning and descaling in the sugar, paper, and food industries, as well as pharmaceutical applications. This versatility makes our pumps a valuable asset in multiple sectors.
Applications
1. Industrial Processes
Our high-pressure plunger pumps are essential in various industrial processes. In the petroleum, chemical, and fertilizer industries, they serve as process pumps, handling fluids without solid particles efficiently. The high precision and durability of our pumps ensure that they can manage the rigorous demands of these industrial applications.
2. High-Pressure Cleaning and Descaling
In industries such as metallurgy and rolling mills, our pumps are used for high-pressure water descaling. This application is crucial for maintaining the quality and performance of machinery and products. Additionally, our pumps are utilized in high-pressure cleaning tasks within the construction, shipbuilding, and chemical industries, providing effective cleaning solutions that enhance operational efficiency.
3. Food and Pharmaceutical Industries
Our pumps also find extensive use in the food and pharmaceutical industries, where high-pressure liquid production is required. The precision and cleanliness of our pumps ensure that they can handle these sensitive applications without compromising the integrity of the products being processed. This makes them ideal for applications where hygiene and precision are paramount.
In conclusion, our Pumps category offers a comprehensive range of high-quality, durable, and efficient pumps designed to meet the diverse needs of various industries. With advanced design, precision manufacturing, and rigorous quality control, our pumps provide exceptional performance and reliability. Whether you need a pump for industrial processes, high-pressure cleaning, or specialized applications in the food and pharmaceutical sectors, our pumps are the solution. Explore our range of pumps today and experience the difference in quality and performance that sets our products apart.
3-piston alternating volumetric pumps for use on cleaning units and industrial systems. It can be coupled to various types of motors, directly or wit...
3-piston alternating volumetric pumps for use on cleaning units and industrial systems. It can be coupled to various types of motors, directly or wit...
3-piston alternating volumetric pumps for use on cleaning units and industrial systems. It can be coupled to various types of motors, directly or wit...
3-piston alternating volumetric pumps for use on cleaning units and industrial systems. It can be coupled to various types of motors, directly or wit...
3-piston alternating volumetric pumps for use on cleaning units and industrial systems. It can be coupled to various types of motors, directly or wit...
3-piston alternating volumetric pumps for use on cleaning units and industrial systems. It can be coupled to various types of motors, directly or wit...
3-piston alternating volumetric pumps for use on cleaning units and industrial systems. It can be coupled to various types of motors, directly or wit...
3-piston alternating volumetric pumps for use on cleaning units and industrial systems. It can be coupled to various types of motors, directly or with...
3-piston alternating volumetric pumps for use on cleaning units and industrial systems. It can be coupled to various types of motors, directly or wit...
3-piston alternating volumetric pumps for use on cleaning units and industrial systems. It can be coupled to various types of motors, directly or with...
3-piston alternating volumetric pumps for use on cleaning units and industrial systems. It can be coupled to various types of motors, directly or wit...
3-piston alternating volumetric pumps for use on cleaning units and industrial systems. It can be coupled to various types of motors, directly or wit...
3-piston alternating volumetric pumps for use on cleaning units and industrial systems. It can be coupled to various types of motors, directly or with flexible joints. Pump body and cover in die-cast aluminum alloy. The side cover may be blind or incorporate oil sight glass. Rear cover with an oil drain outlet. Pistons driven by crank-connecting rod mechanism. Pump shaft in pressed high-strength steel. Oversized friction bearings. Connecting rods in die-cast special low-friction zinc-aluminium alloy. One-piece ceramic pistons. Double gasket sealing system. Intake and delivery valves have plugs for easier maintenance.

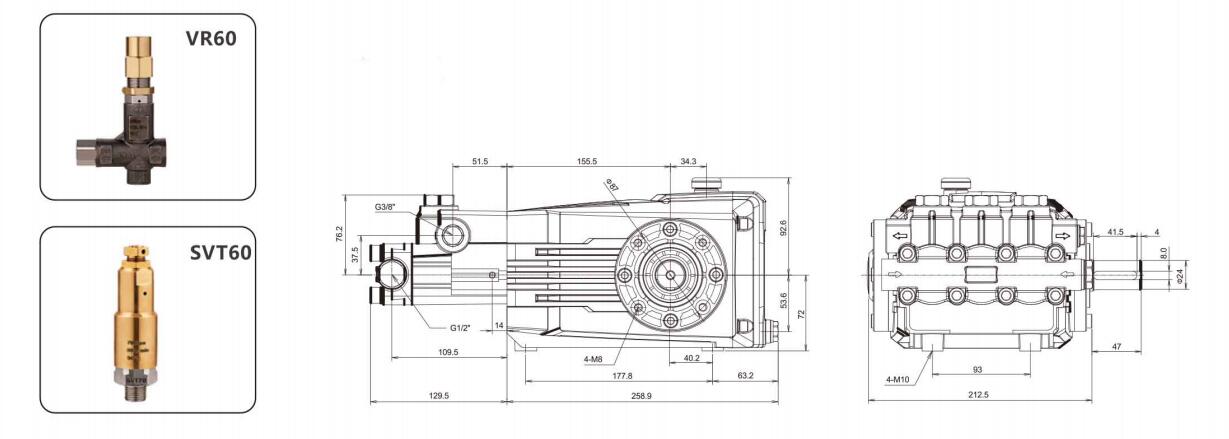

● KTR-N.1450rpm N version Ø24mm
Model | FloW | Pressure | Power | Speed | Inlet | Outlet | Weight | |||
L/min | gpm | bar | psi | hp | kw | rpm | thread | thread | KG | |
KTR1250 | 12 | 3.2 | 500 | 7250 | 16 | 12 | 1450 | G1/2" | G3/8" | 20.6 |
KTR1650 | 16.5 | 4.4 | 500 | 7250 | 21.5 | 16 | 1450 | G1/2" | G3/8" | 20.6 |
KTR1850 | 18 | 4.8 | 500 | 7250 | 24 | 18 | 1450 | G1/2" | G3/8" | 20.6 |
KTR2335 | 23 | 6 | 350 | 5075 | 21.6 | 16.1 | 1450 | G1/2" | G3/8" | 20.6 |
KTR2250 | 22 | 5.8 | 500 | 7250 | 29.5 | 22 | 1450 | G1/2" | G3/2' | 20.6 |
KTR3050 | 30 | 8 | 500 | 7250 | 40 | 30 | 1450 | G1/2" | G3/8" | 20.6 |

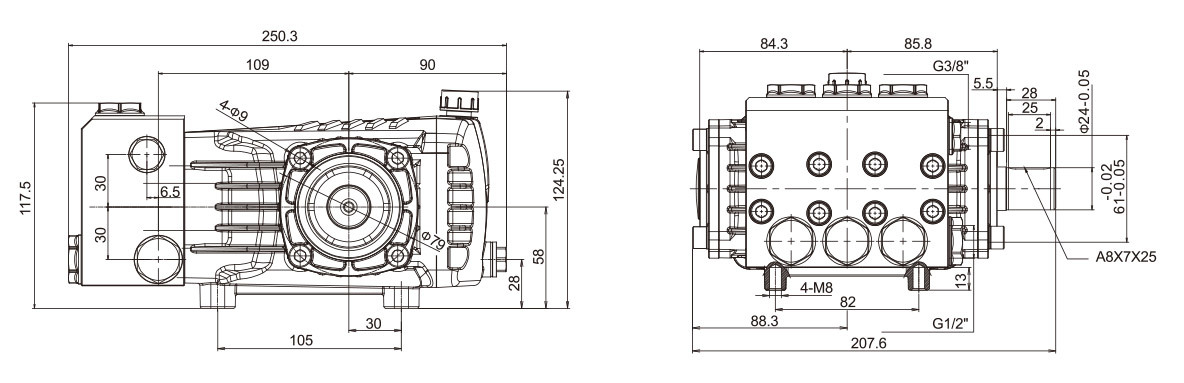

● FKEG-N.1450rpm N version Ø24mm
Model | FloW | Pressure | Power | Speed | Inlet | Outlet | Weight | |||
L/min | gpm | bar | psi | hp | kw | rpm | thread | thread | KG | |
FKEG0810 | 8 | 2.1 | 100 | 1450 | 2.2 | 1.6 | 1450 | G1/2" | G3/8" | 8.7 |
FKEG1510 | 15.4 | 4 | 100 | 1450 | 4 | 3 | 1450 | G1/2" | G3/8" | 8.7 |
FKEG1525 | 15.4 | 4 | 250 | 3600 | 10 | 7.5 | 1450 | G1/2" | G3/8" | 8.7 |
● FKEG-F05/F11.1450rpm N version Ø28mm
Model | FloW | Pressure | Power | Speed | Inlet | Outlet | Weight | |||
L/min | gpm | bar | psi | hp | kw | rpm | thread | thread | KG | |
FKEG1315 | 13.2 | 3.5 | 150 | 2200 | 5.5 | 4 | 1450 | G1/2" | G3/8" | 9 |
FKEG1525 | 15.4 | 4 | 250 | 3600 | 10 | 7.5 | 1450 | G1/2" | G3/8" | 9 |
FKE2020 | 20 | 5.3 | 200 | 2900 | 10.6 | 8 | 1450 | G1/2" | G3/8" | 9 |

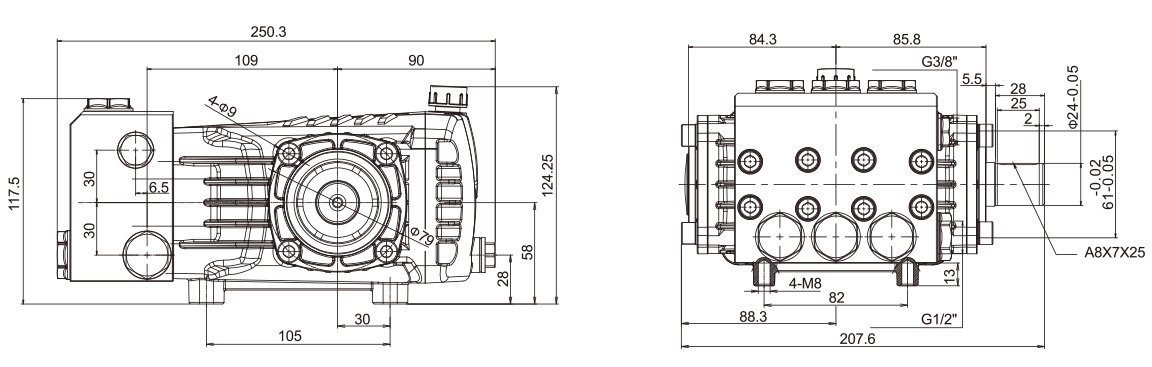

● FKDG-N.1450rpm N version Ø24mm
Model | FloW | Pressure | Power | Speed | Inlet | Outlet | Weight | |||
L/min | gpm | bar | psi | hp | kw | rpm | thread | thread | KG | |
FKDG2610 | 26 | 6.8 | 100 | 1450 | 6.6 | 5 | 1450 | G3/4" | G1/2" | 13.8 |
FKDG3015 | 30 | 7.9 | 150 | 2200 | 8 | 6 | 1450 | G3/4" | G1/2" | 13.8 |
FKDG4015 | 40 | 10.5 | 150 | 2200 | 10 | 7.5 | 1450 | G3/4" | G1/2" | 13.8 |

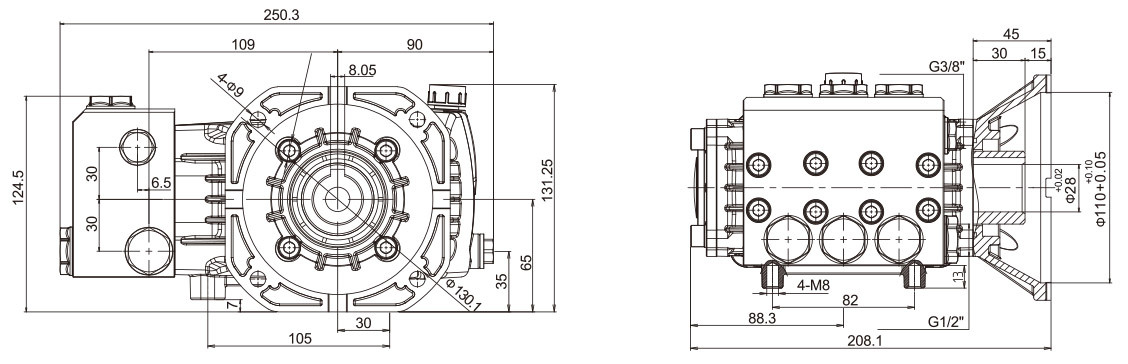

● FKDG-F01/F10 .1450rpm N version Ø28mm
Model | FloW | Pressure | Power | Speed | Inlet | Outlet | Weight | |||
L/min | gpm | bar | psi | hp | kw | rpm | thread | thread | KG | |
FKDG2610 | 26 | 6.8 | 100 | 1450 | 6.6 | 5 | 1450 | G3/4" | G1/2" | 14.5 |
FKDG3015 | 30 | 7.9 | 150 | 2200 | 8 | 6 | 1450 | G3/4" | G1/2" | 14.5 |
FKDG4015 | 40 | 10.5 | 150 | 2200 | 10 | 7.5 | 1450 | G3/4" | G1/2" | 14.5 |
● FKAG- N.1450rpm N version Ø24mm
Model | FloW | Pressure | Power | Speed | Inlet | Outlet | Weight | |||
L/min | gpm | bar | psi | hp | kw | rpm | thread | thread | KG | |
FKAG3020 | 30 | 7.9 | 200 | 2900 | 16 | 12 | 1450 | G1" | G1/2" | 24.6 |
FKAG4020 | 40 | 10.6 | 200 | 2900 | 21.5 | 16 | 1450 | G1" | G1/2" | 24.6 |
FKAG5020 | 50 | 13.2 | 200 | 2900 | 26.5 | 20 | 1450 | G1" | G1/2" | 24.6 |
FKAG5620 | 56 | 14.8 | 220 | 2900 | 30 | 22 | 1450 | G1" | G1/2" | 24.6 |
● FKAG- N.1450rpm N version Ø24mm
Model | FloW | Pressure | Power | Speed | Inlet | Outlet | Weight | |||
L/min | gpm | bar | psi | hp | kw | rpm | thread | thread | KG | |
FKAG5210 | 52 | 13.8 | 100 | 1450 | 14 | 11 | 1450 | G1" | G1/2' | 25.2 |
FKAG6210 | 62 | 16.4 | 100 | 1450 | 16.5 | 12.5 | 1450 | G1" | G1/2" | 25.2 |
FKAG6610 | 66 | 17.5 | 100 | 1450 | 17.6 | 13.2 | 1450 | G1" | G1/2" | 25.2 |
FKAG7410 | 74 | 19.5 | 100 | 1450 | 20 | 15 | 1450 | G1" | G1/2" | 25.2 |
● FKEX- N.1450rpm N version Ø24mm
Model | FloW | Pressure | Power | Speed | Inlet | Outlet | Weight | |||
L/min | gpm | bar | psi | hp | kw | rpm | thread | thread | KG | |
FKEX0810 | 8 | 2.1 | 100 | 1450 | 2.2 | 1.6 | 1450 | G1/2" | G3/8" | 7.3 |
FKEX1510 | 15.4 | 4 | 100 | 1450 | 4 | 3 | 1450 | G1/2" | G3/8" | 7.3 |
FKEX1525 | 15.4 | 4 | 250 | 3600 | 10 | 7.5 | 1450 | G1/2" | G3/8" | 7.3 |

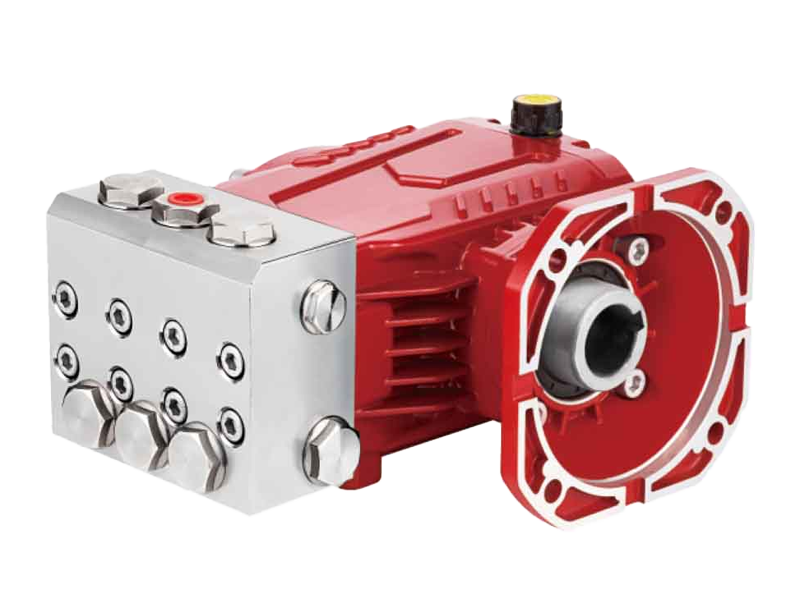

● FKEX-F05/F11.1450rpm C version Ø28mm
Model | FloW | Pressure | Power | Speed | Inlet | Outlet | Weight | |||
L/min | gpm | bar | psi | hp | kw | rpm | thread | thread | KG | |
FKEX1315 | 13.2 | 3.5 | 150 | 2200 | 5.5 | 4 | 1450 | G1/2" | G3/8" | 9 |
FKEX1525 | 15.4 | 4 | 250 | 3600 | 10 | 7.5 | 1450 | G1/2" | G3/8" | 9 |
FKEX2010 | 20 | 5.3 | 100 | 1450 | 5.5 | 4 | 1450 | G1/2" | G3/8" | 9 |
FKEX2020 | 20 | 5.3 | 200 | 2900 | 10.6 | 8 | 1450 | G1/2" | G3/8" | 9 |

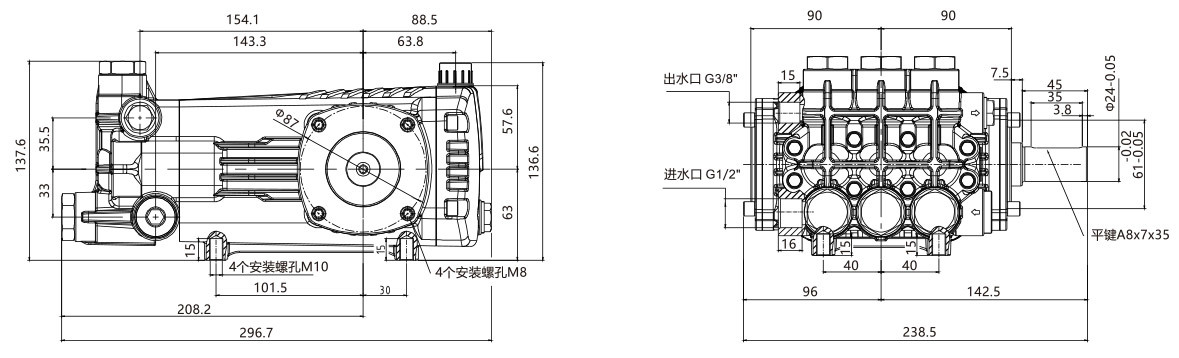

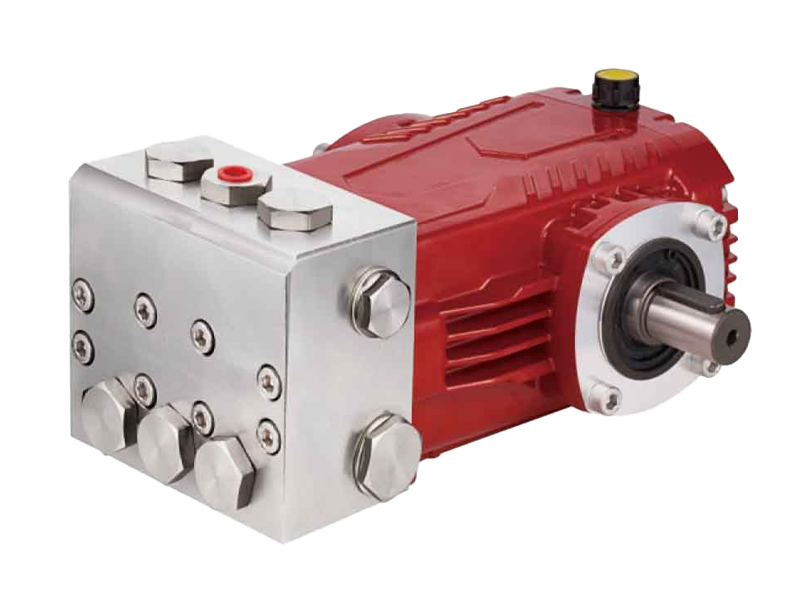

● FKDX-N.1450rpm N version Ø24mm
Model | FloW | Pressure | Power | Speed | Inlet | Outlet | Weight | |||
L/min | gpm | bar | psi | hp | kw | rpm | thread | thread | KG | |
FKDX1535 | 15.4 | 4 | 350 | 5075 | 14 | 10.5 | 1450 | G1/2" | G3/8" | 11.2 |
FKDX2035 | 20 | 5.3 | 350 | 5075 | 18.5 | 14 | 1450 | G1/2" | G3/8" | 11.2 |
FKDX3015 | 30 | 7.9 | 150 | 2200 | 8 | 6 | 1450 | G3/4" | G3/8" | 11.2 |
FKDX4015 | 40 | 10.5 | 150 | 2200 | 10 | 7.5 | 1450 | G3/4" | G3/8" | 11.2 |

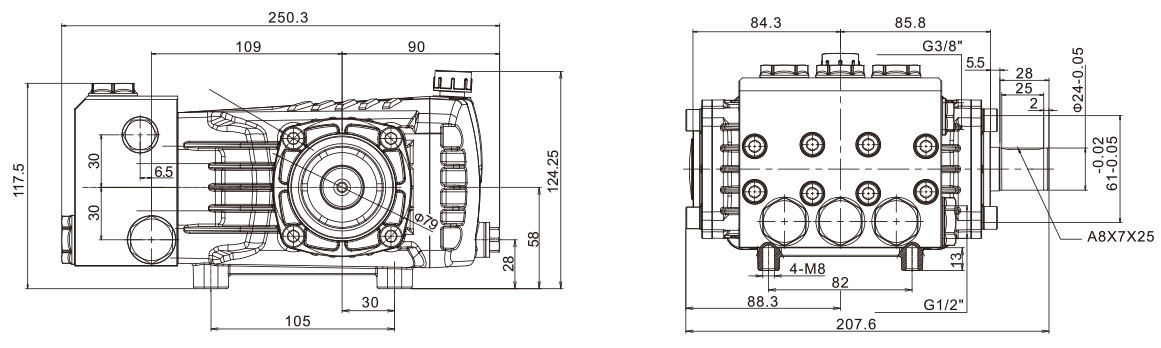

● FKDGX-F01/F10.1450rpm C version Ø24mm
Model | FloW | Pressure | Power | Speed | Inlet | Outlet | Weight | |||
L/min | gpm | bar | psi | hp | kw | rpm | thread | thread | KG | |
FKDGX2610 | 26 | 6.8 | 100 | 1450 | 6.6 | 5 | 1450 | G3/4" | G1/2" | 13.8 |
FKDGX3015 | 30 | 7.9 | 150 | 2200 | 8 | 6 | 1450 | G3/4 | G1/2" | 13.8 |
FKDGX4015 | 40 | 10.5 | 150 | 2200 | 10 | 7.5 | 1450 | G3/4' | G1/2" | 13.8 |

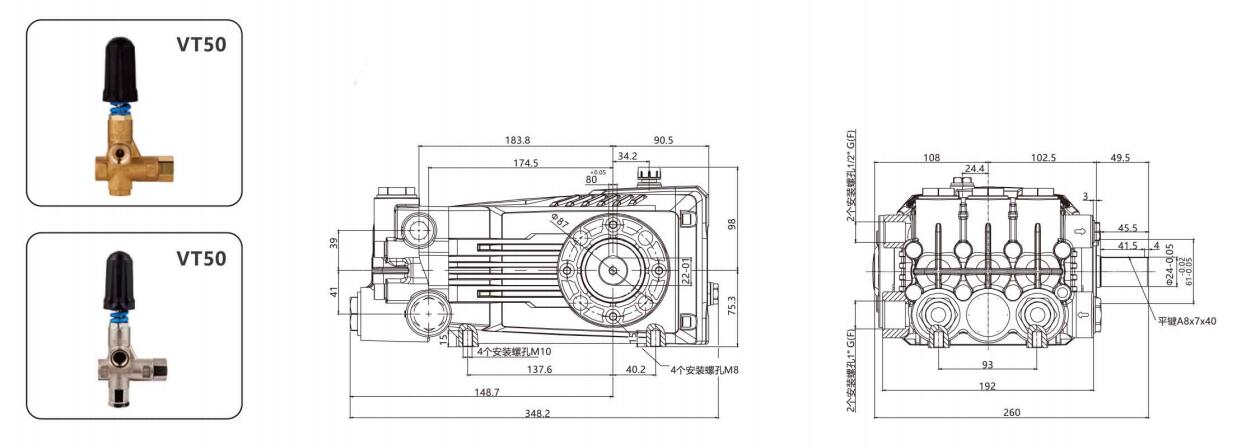

● FFKAX-N.1450rpm N version Ø24mm
Model | FloW | Pressure | Power | Speed | Inlet | Outlet | Weight | |||
L/min | gpm | bar | psi | hp | kw | rpm | thread | thread | KG | |
FKAX4020 | 40 | 10.6 | 200 | 2900 | 21.5 | 16 | 1450 | G1" | G1/2" | 19.8 |
FKAX5020 | 50 | 13.2 | 200 | 2900 | 36.5 | 20 | 1450 | G1" | G1/2" | 19.8 |
FKAX5215 | 52 | 13.7 | 150 | 2175 | 21 | 15.6 | 1450 | G1" | G1/2" | 19.8 |
FKAX5620 | 56 | 14.8 | 200 | 2900 | 30 | 22 | 1450 | G1" | G1/2" | 19.8 |
FKAX6615 | 66 | 17.5 | 150 | 2500 | 26.5 | 20 | 1450 | G1" | G1/2" | 19.8 |
FKAX7415 | 74 | 19.5 | 150 | 2200 | 30 | 22 | 1450 | G1" | G1/2" | 19.8 |
Feike is a OEM Piston Pump and Plunger Pump Supplier in Taizhou, Zhejiang, China. We have high precision Automatic TAKAM CNC machines and 3D coordinate no-contact detection machine to ensure the quality of the Pump heads, Crankshaft cases, and valves for the pumps. We have 4 assembly lines so far. Three production lines for triplex pumps separated by high pressure, mid pressure, and low pressure. And one production line for safety valves and regulating valves. We use fixtures to ensure the assembly quality of the ceramic plungers. Air tightness testing is applied for every single semi-finished pump before injecting the lubrication oil.
And every single triplex plunger pump will be tested with an electric motor for running about 15 minutes before final packing. We use lasing to carve the ID numbers on the surface of the pump for tracking. Every final pump is packed with an air bag to protect the pump from damage in the transportation. We can produce about 6000 triplex plunger pumps a month. Welcome to inquiry about our products. We are looking forward to cooperating with you.
